The Azure Instance Metadata Service (IMDS) provides a REST endpoint for Azure Monitot Agent (AMA) to retrieve metadata and access tokens from Azure Virtual Machines (VMs) and Azure Arc-enabled servers. This is a baseline for AMA to be functioning. This guide outlines how to test connectivity to IMDS and verify its functionality.
Overview
IMDS allows you to fetch metadata and access tokens for further use by AMA. Testing connectivity involves two steps:
- Metadata Response: Retrieve a JSON response containing details about the VM or Arc-enabled server.
- Access Token: Verify that your identity is accepted by IMDS and an access token is issued.
IMDS with Proxy Servers
Proxy servers are not supported with IMDS. If a proxy is configured, ensure the IMDS address (169.254.169.254 for VMs or localhost:40342 for Arc) is added to the bypass list.
Reference: IMDS Proxy Documentation
Testing IMDS on Azure Virtual Machines
Verify that you receive a 200 response and a JSON response with VM details.
Using curl (Linux/Windows)
1

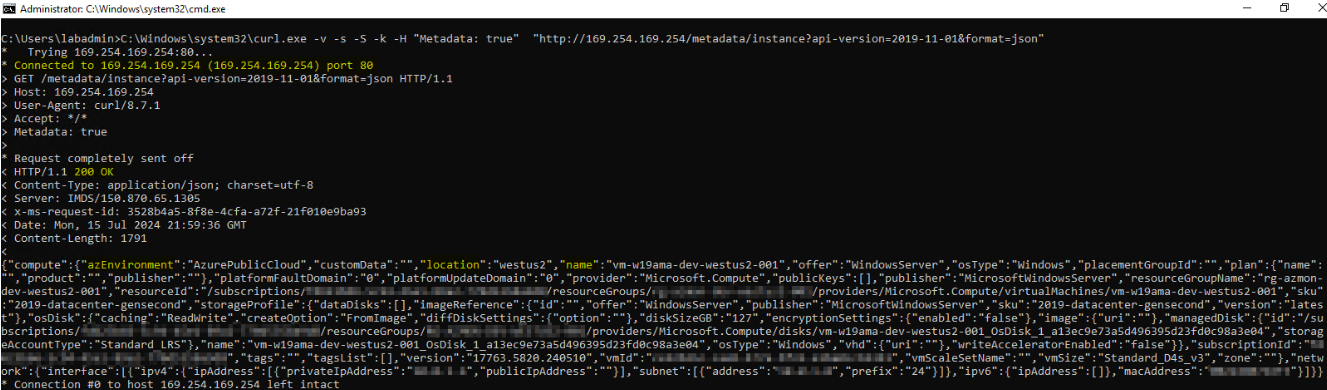

| curl -v -s -S -k -H "Metadata: true" "http://169.254.169.254/metadata/instance?api-version=2019-11-01&format=json"
|

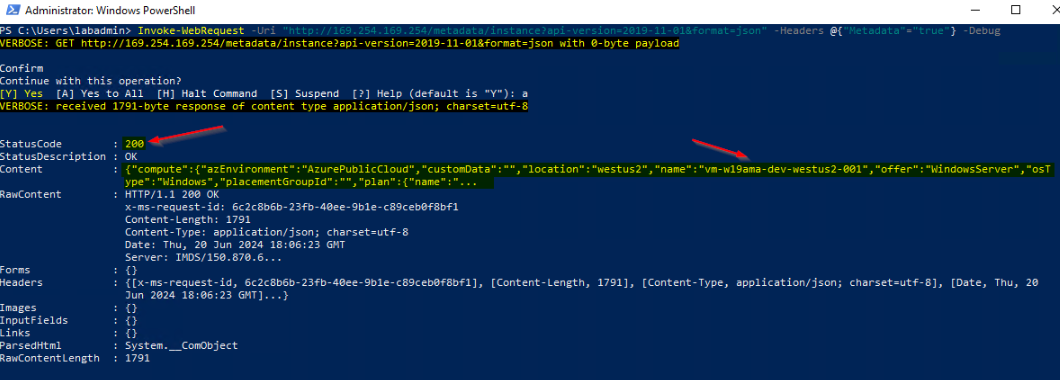

Using PowerShell
1
| Invoke-WebRequest -Uri "http://169.254.169.254/metadata/instance?api-version=2019-11-01&format=json" -Headers @{"Metadata"="true"} -Debug
|
Access Token Retrieval
Verify that you receive a 200 response and a JSON response with an access token.
Note: Treat the access_token as sensitive information.

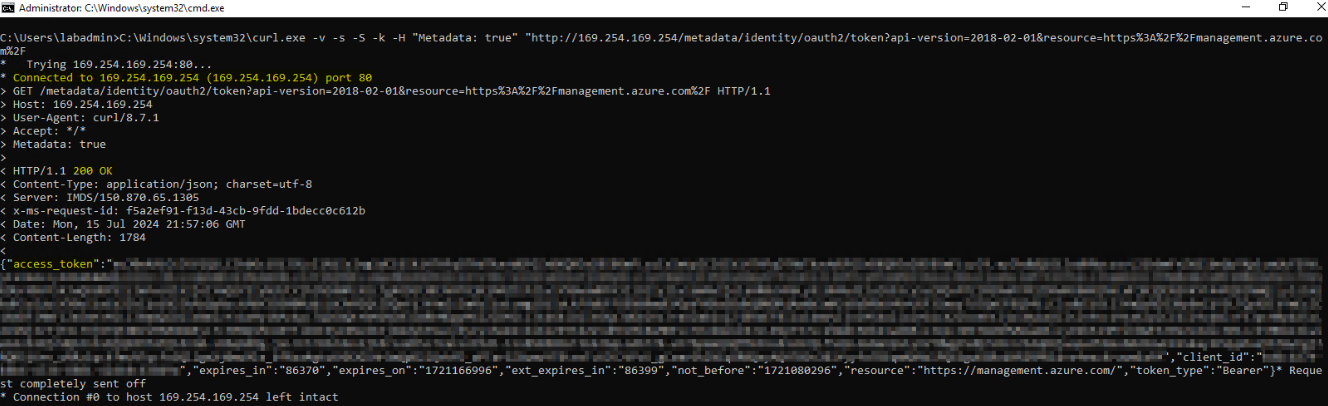

System Managed Identity
Using curl
1
| curl -v -s -S -k -H "Metadata: true" "http://169.254.169.254/metadata/identity/oauth2/token?api-version=2018-02-01&resource=https%3A%2F%2Fmanagement.azure.com%2F"
|
Using PowerShell
1

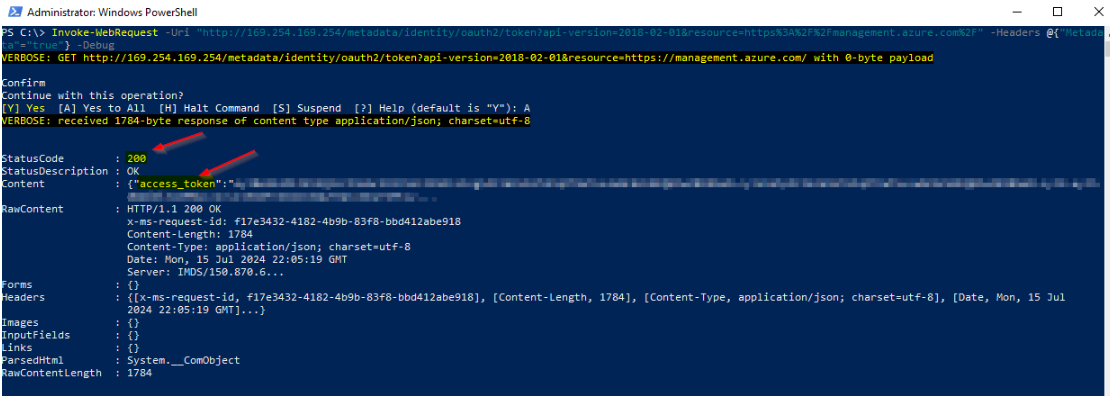

| Invoke-WebRequest -Uri "http://169.254.169.254/metadata/identity/oauth2/token?api-version=2018-02-01&resource=https%3A%2F%2Fmanagement.azure.com%2F" -Headers @{"Metadata"="true"} -Debug
|

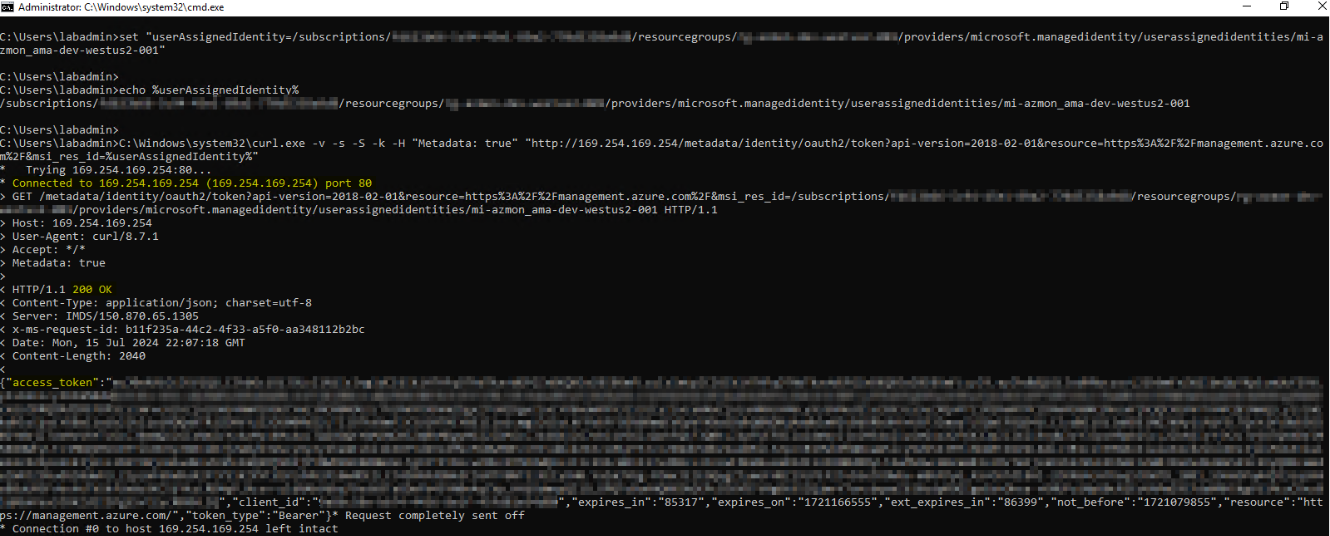

User Managed Identity
Replace {subscriptionId}, {resourceGroup}, and {userAssignedIdentityName} with your values.
Using curl
1
2
| userAssignedIdentity="/subscriptions/{subscriptionId}/resourcegroups/{resourceGroup}/providers/microsoft.managedidentity/userassignedidentities/{userAssignedIdentityName}"
curl -v -s -S -k -H "Metadata: true" "http://169.254.169.254/metadata/identity/oauth2/token?api-version=2018-02-01&resource=https%3A%2F%2Fmanagement.azure.com%2F&msi_res_id=$userAssignedIdentity"
|
Using PowerShell
1
2

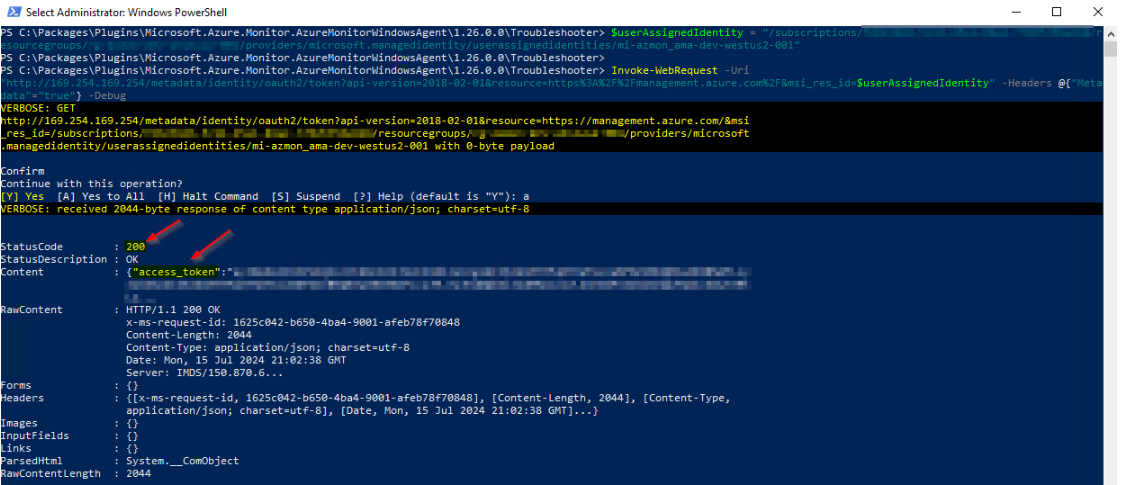

| $userAssignedIdentity = "/subscriptions/{subscriptionId}/resourcegroups/{resourceGroup}/providers/microsoft.managedidentity/userassignedidentities/{userAssignedIdentityName}"
Invoke-WebRequest -Uri "http://169.254.169.254/metadata/identity/oauth2/token?api-version=2018-02-01&resource=https%3A%2F%2Fmanagement.azure.com%2F&msi_res_id=$userAssignedIdentity" -Headers @{"Metadata"="true"} -Debug
|
Testing IMDS on Azure Arc-Enabled Servers
Verify that you receive a 200 response and a JSON response with server details.
Using curl
1

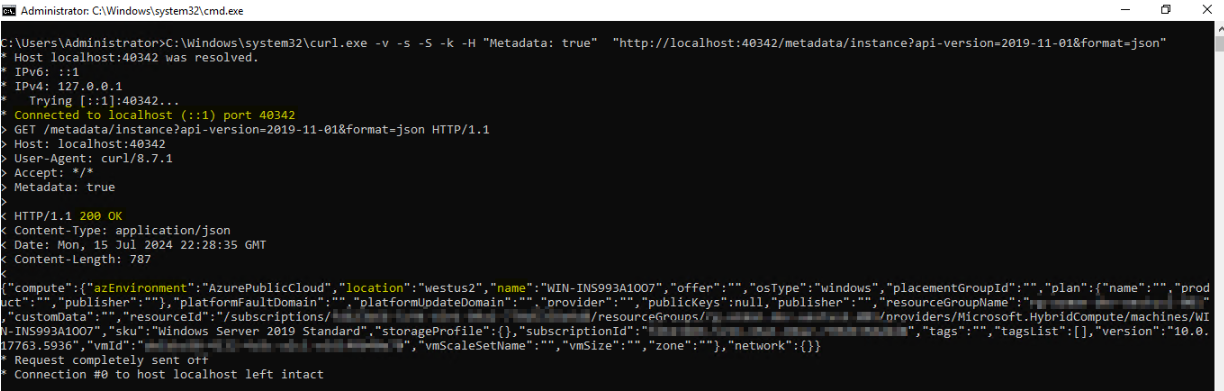

| curl -v -s -S -k -H "Metadata: true" "http://localhost:40342/metadata/instance?api-version=2019-11-01&format=json"
|
Using PowerShell
1

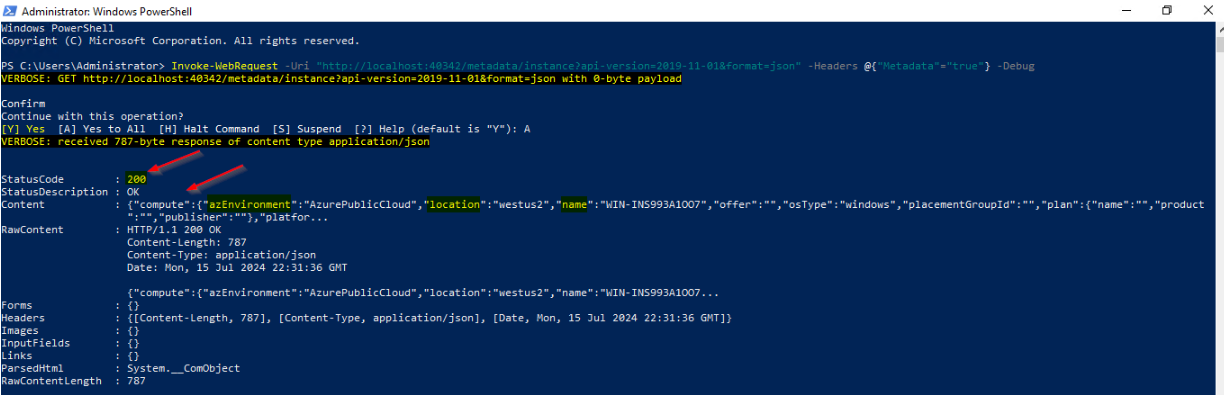

| Invoke-WebRequest -Uri "http://localhost:40342/metadata/instance?api-version=2019-11-01&format=json" -Headers @{"Metadata"="true"} -Debug
|
4.2 Access Token Retrieval
Verify that you receive a 200 response and a JSON response with an access token.
Note: Treat the access_token as sensitive information.
Using curl
1

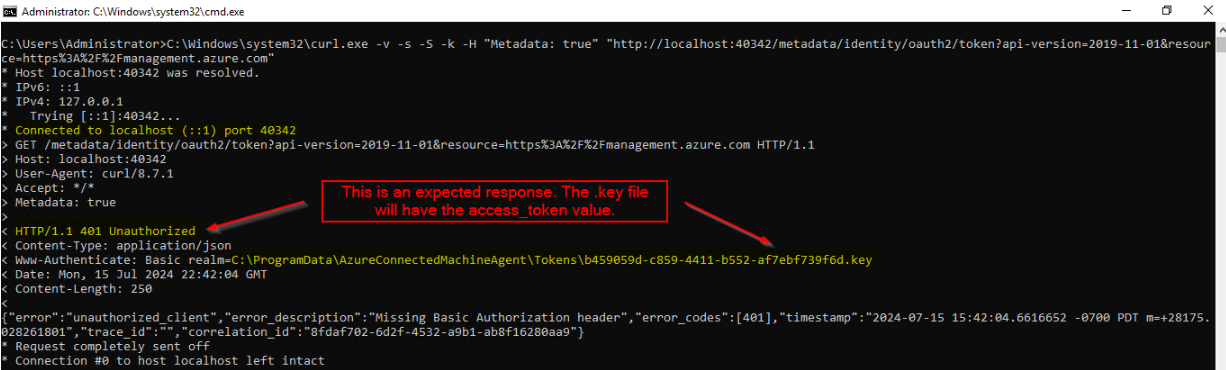

| curl -v -s -S -k -H "Metadata: true" "http://localhost:40342/metadata/identity/oauth2/token?api-version=2019-11-01&resource=https%3A%2F%2Fmanagement.azure.com"
|
Using PowerShell
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

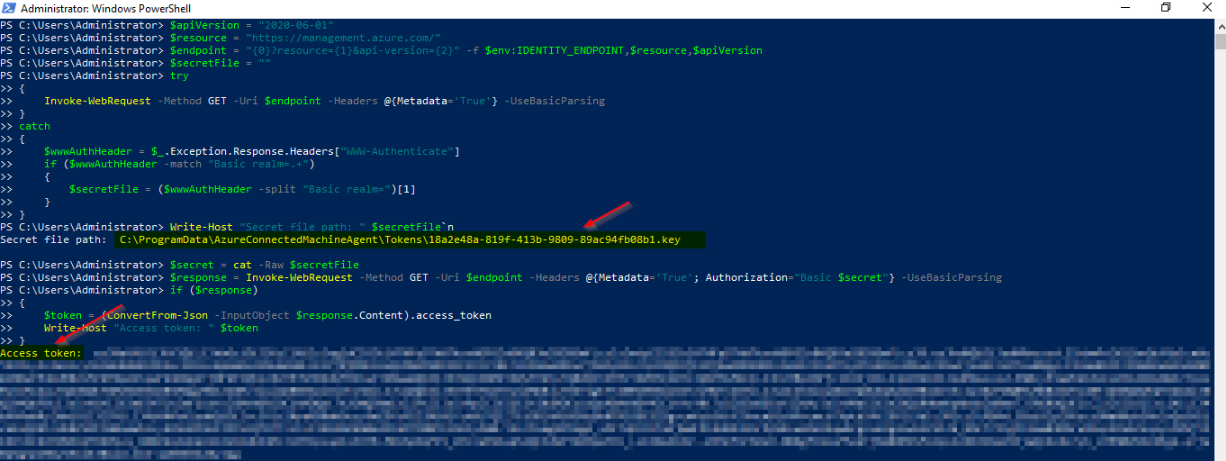

| $apiVersion = "2020-06-01"
$resource = "https://management.azure.com/"
$endpoint = "{0}?resource={1}&api-version={2}" -f $env:IDENTITY_ENDPOINT,$resource,$apiVersion
$secretFile = ""
try
{
Invoke-WebRequest -Method GET -Uri $endpoint -Headers @{Metadata='True'} -UseBasicParsing
}
catch
{
$wwwAuthHeader = $_.Exception.Response.Headers["WWW-Authenticate"]
if ($wwwAuthHeader -match "Basic realm=.+")
{
$secretFile = ($wwwAuthHeader -split "Basic realm=")[1]
}
}
Write-Host "Secret file path: " $secretFile`n
$secret = cat -Raw $secretFile
$response = Invoke-WebRequest -Method GET -Uri $endpoint -Headers @{Metadata='True'; Authorization="Basic $secret"} -UseBasicParsing
if ($response)
{
$token = (ConvertFrom-Json -InputObject $response.Content).access_token
Write-Host "Access token: " $token
}
|
Common Errors

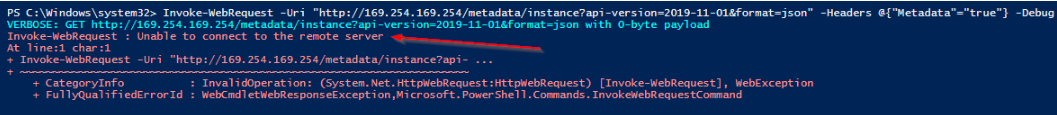

Here’s an example of what a failure would look like if we didn’t have TCP connectivity (for instance, if a firewall was blocking):
Conclusion
By following these steps, you can verify connectivity to IMDS and ensure your Azure VMs or Arc-enabled servers can retrieve metadata and access tokens. If issues arise, check proxy settings and ensure the IMDS endpoint is reachable.
For further details, refer to the IMDS documentation.
